All prices are in US Dollars

Item

Qty

Part No.

Description

Price

1.0

 1

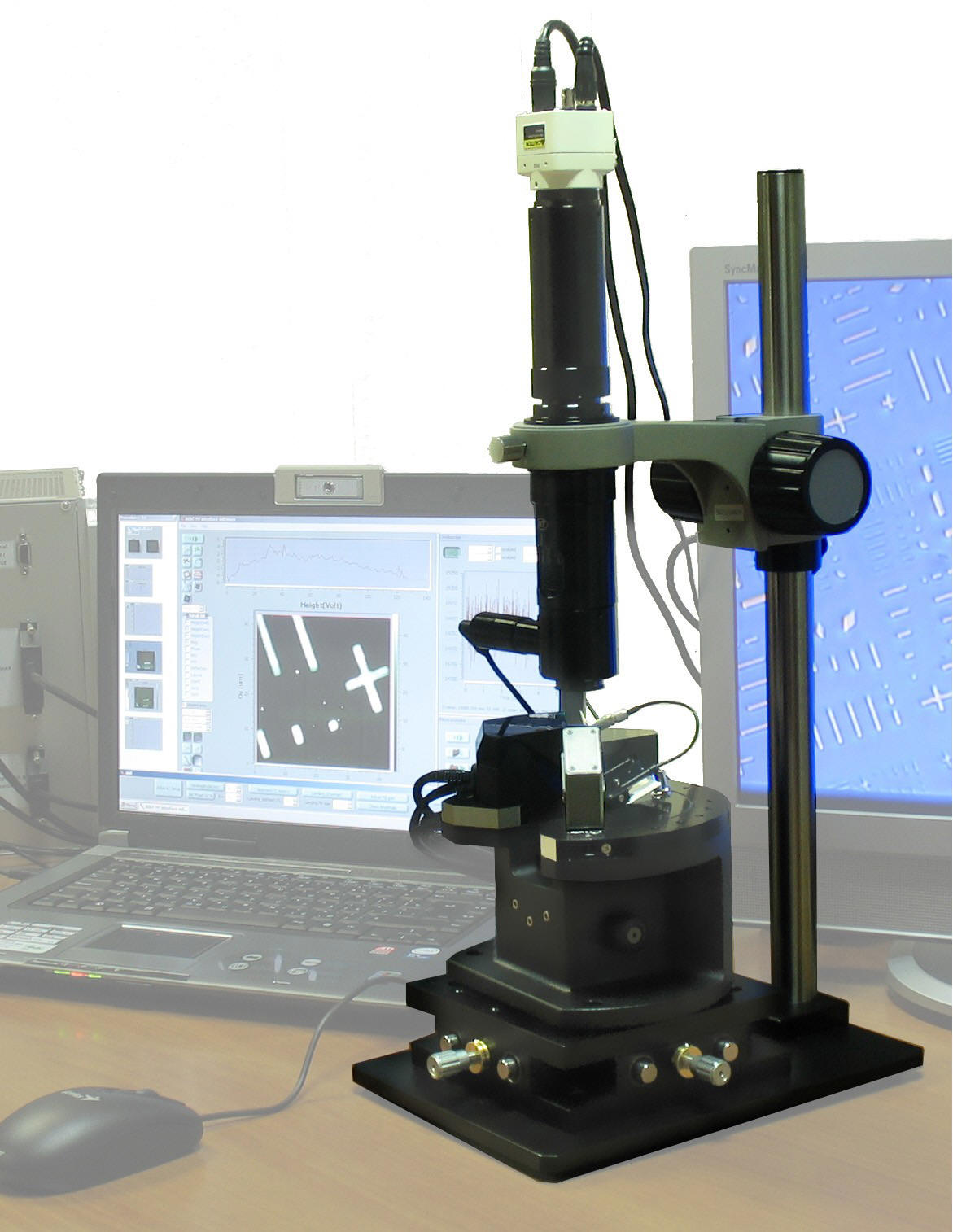

HeroN  AFM -  SmartSPM   Consisting of:

  1.1

 1

HeroN  SPM Head  Top/side optical access for external laser illumination:
    - Simultaneous top/side optical access for 0.28/0.42
      NA Mitutoyo objectives (10x/20x);
Fully automated laser and photodiode alignment.
Infrared laser 1300nm.
Registration system noise less than 0.03 nm.
Objectives are not included.

  1.2

 1

S001

HeroN XYZ piezo closed loop scanner with capacitive sensors and flexible guides, scanning range 100x100x10 µm, nonlinearity < 0.1%, bidirectional repeatability < 10 nm.

  1.3

 1

HeroN motorized approach system, fast and safe approach algorithm.
Motorized XY sample positioning, 5mm range in X and Y, resolution 1um.
Compatible with HeroN S001 scanner.

  1.4

 1

HeroN modular fully digital expandable controller,
high speed DSP 190 MHz,
USB 2.0 interface,
high speed 500 kHz 18-bit ADC, 20 channels,
5 MHz frequency range registration system,
2 lock-in amplifiers with 5 MHz frequency range,
8 digital 32–bit generators 5 MHz frequency range, 0.01 Hz resolution,
HV amplifiers -10 ÷ 110v, 2 ppm HV noise.
AC, DC Bias Voltage -50 ÷ 50v, 0÷2 MHz frequency range,
3 step motor control,
digital inputs/outputs for integration with external equipment,
analog inputs/outputs for integration with external equipment, no grounding loop.

  1.5

  1

HeroN user friendly windows software, powerful data processing, pixel shadier 3.0 visualization,  macro language for user programmable front end interface dialog boxes, scripting language for real time DSP programming, availability to develop custom operation modes in addition to known range of AFM standard modes, including true non-contact mode and 3D scanning.

  1.6

  1

High performance computer with Windows XP operating system, Intel Core 2 Duo, 1GB RAM, 250GB HDD, CD R/W, 19 inch LCD monitor.

  1.7

  1

Vibration isolation table  - Halcyonics “Nano 20”

  1.8

  1

Optical viewing system

  1.10

  1

Set of Cantilevers

Sub Total

     e-mail for a quote

2.0

Installation, and training at customer's location. ( 5 Days)

     e-mail for a quote

3.0

Estimated Freight and Insurance -   (weight ~ 100 kg)

     e-mail for a quote

Total

     e-mail for a quote

. Available Accessories

4.0

Additional Cantilevers - Please See Attached Cantilever Price List
