Lithium Triborate (LBO) for Second harmonic generation of 1053 nm - request a quote

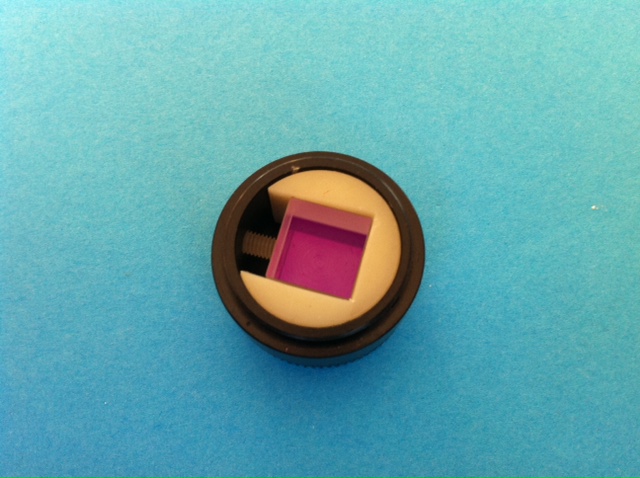

LBO SHG Crystal– 20 °C Operation

Material - Lithium Triborate (LBO)
Application - Second harmonic generation of 1053 nm
Phase Matching Type - Type I SHG

Crystal Orientation
θ = 90.0º f = 12.2º (room temperature)
Crystal Orientation Tolerance
Δθ = ± 0.25º Δf = ± 0.25º
Crystal Dimensions (WxHxL)
10± 0.1, 10 ± 0.1, 10 ± 0.5 mm

Beam Propagation Direction
Along axis of crystal length

Entrance & Exit Surfaces
Surface Parallelism < 20 arc seconds
Surface Perpendicularity < 5 arc minutes
Clear Aperture > 90% central area
Wavefront Distortion < λ/8 at 633 nm
Flatness < λ/8 at 633 nm
Surface Quality (Scratch/ Dig) 10/5 per Mil-O-13830A

Anti-reflection with reflectivity < 0.5% at 1053 and 527 nm.


LBO SHG @ 1035 nm
 Model   Product Name+   Buy Now
 CR-LBO-5-5-1   LBO crystal, 5x5x1 mm  Buy Now
 CR-LBO-5-5-4   LBO crystal, 5x5x2 mm  Buy Now
 CR-LBO-5-5-2   LBO crystal, 5x5x2 mm  Buy Now
 CR-LBO-5-5-6   LBO crystal, 5x5x6 mm  Buy Now
