SOLID-STATE RAMAN SHIFTER

Request a quote

The Solid State Raman Shifter LZ series uses innovative technology Ba(NO3)2 (shift 1047 cm-1) and KGdWO4 (shift 767.3 and 901.5 cm-1) crystals. The crystals’ unique properties allow their application for Raman frequency conversion ranging from VIS to IR. The nonlinear crystal placed in the optimized cavity ensures high conversion efficiency of the the pump radiation to the 1st, 2nd or 3rd order Stokes, alongside with low generation thresholds. Upon your order mirrors can be installed into the LZ221 Shifter for obtaining definite Stokes, as well as for receiving the multi-line output (generating several components simultaneously) with the total conversion efficiency more than 50%. The design of this device minimizes the needs for user adjustments and allows to easily replace cavity mirrors while re-aligning the Raman Shifter from one wavelength to another.

LZ221

Solid-state Raman Shifter Model LZ221

Unlike gas Raman Shifters using high pressure cells, the LZ221 is characterized by complete safety in operation and low operating densities of pump radiation, what leads to additional advantages and facilitates the operation.

RAMAN Shifter model LZ221 SPECIFICATIONS

Pump laser
type

Pump wavelength, nm

Active
medium*

Output wavelength, nm

1st Stokes

2nd Stokes

3rd Stokes

Nd:YAG

532

1

555

579

606

2

559

588

621

3

563

599

639

1064

1

1159

1272

1409

2

1177

1317

1494

3

1197

1369

1598

1318

1

1466

1652

—

2

1496

1729

—

3

1529

1820

—

Ruby

694

1

733

777

826

2

740

793

854

3

748

812

887

Ti:Sapphire

750-950

1

796-1025

848-1112

907-1216

2

804-1039

867-1146

941-1279

3

814-1055

890-1189

981-1354

Forsterit

1200-1300

1

1322-1444

1471-1624

—

2

1346-1473

1531-1698

—

3

1372-1505

1603-1786

—

* 1 — KGdWO4 crystal, shift 767.3 cm-1
* 2 — KGdWO4 crystal, shift 901.5 cm-1
* 3 — Ba(NO3)2 crystal, shift 1047 cm-1

Specifications are subject to change without notice.

Raman shifter brochure

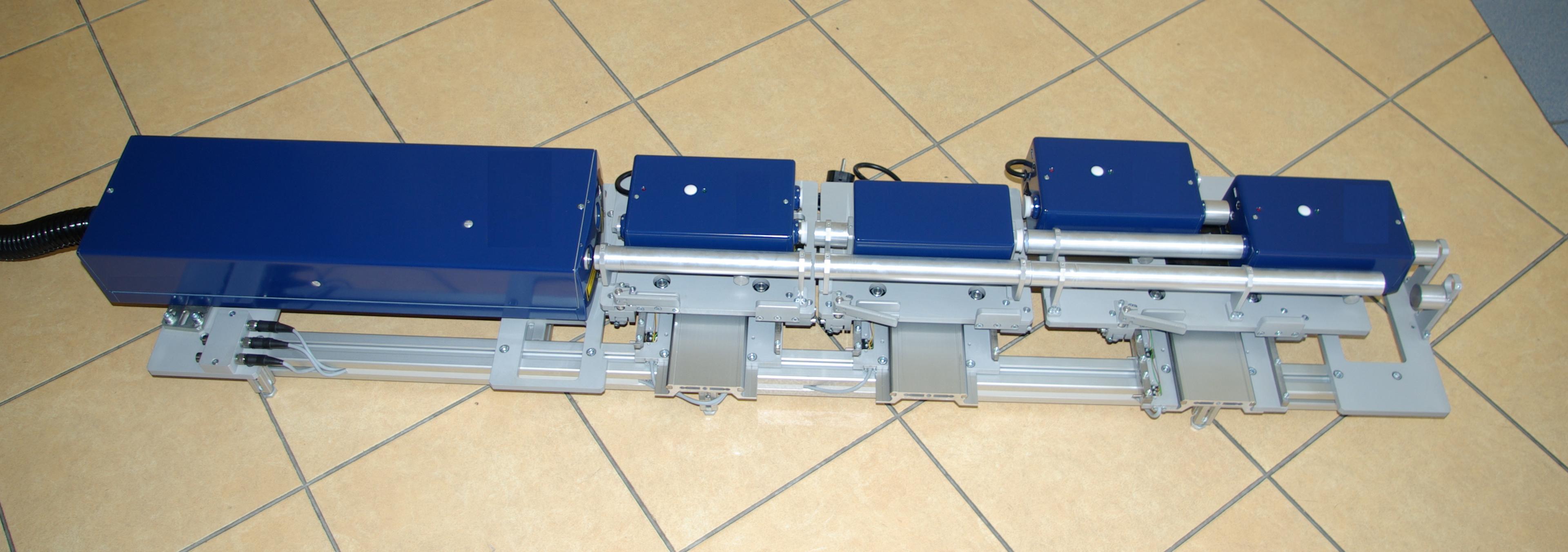

Del Mar Photonics Nd:YAG laser system at the Universidad Autónoma de Nuevo León, Monterrey, Mexico

Compact pulsed Nd:YAG lasers - request a quote
Laser system comprises
1. Pulsed Nd:YAG laser model LQ929 - request a quote
2. Second Harmonic Generator model LG101 - request a quote
3. Third Harmonic Generator model LG103 - request a quote
4. Fourth Harmonic Generator model LG103 - request a quote

packing list





Same system can be ordered on the mounting frame there is a switching platform to use 532, 355 and 266 nm radiation.


                  LG101             LG103 (3ω)           LG103 (4ω)                HS unit
LQ 929 ------------------------------------------------------------------------------------- 1064 nm



                                          LG103 (3ω)           LG103 (4ω)
LQ 929 — LG101 --------------------------------------------------- HS unit --------------- 532 nm




                                                                        LG103 (4ω)                  HS unit
LQ 929 — LG101 — LG103 (3ω) ---------------------------------------------------------- 355 nm




                                           LG103 (3ω)                                               HS unit
LQ 929 — LG101 ----------------------------LG103 (4ω)---------------------------------- 266 nm


1. Pulsed Nd:YAG laser model LQ929
PRR 10 Hz
Output energy at 1064 nm ≥ 1400 mJ
at 532 nm ~ 800 mJ (operated with SHG LG101)
at 355 nm ~ 300 mJ (operated with THG LG103)
at 266 nm ~ 180 mJ (operated with FHG LG103)
Pulse width at 1064 nm 8…11 nsec
Beam diameter ≤ 11 mm
Divergence at 1064 nm ~ 1.5 mrad
Stability at 1064 nm +/- 2.5%
Jitter +/- 1 nsec
Power consumption (single phase, 220 V+/-10%, 50/60Hz), VA, less than 1000
Dimensions, mm
Laser Head 600 x 220 x 115
Power Supply 770 x 340 x 670


Nd:YAG lasers
