DPSS DMP LH series lasers will pump your Ti:Sapphire laser - request a quote

Del Mar Photonics offers High Power CW 532 nm DPSS DMP LH series Lasers suitable for Ti:Sapphire laser pumping

Features
• Compact laser head with sealed  enclosure for long lifetime
• Long lifetime diode pack fiber-coupled to laser head
• Excellent long-term power stability <0.5% rms over 24 hours
• Closed-loop, purpose-built TEC chiller integrated in power supply
 (no need to buy a separate chiller to cool Ti:Sapphire crystal!)
• 5, 6, 8 and 10 W versions

DPSS DMP LH series is a compact, diode-pumped solid-state (DPSS) laser providing high-power, continuous-wave (CW) power at 532nm in a near- perfect TEMoo mode with extremely low optical noise and excellent long-term stability. DPSS DMP LH series is truly a next-generation laser designed and manufactured using many years of experience to provide a sealed, turn-key source of collimated green light with high spectral purity.

A number of key technologies guarantee this performance. Sealed technology keeps all dirt, dust and moisture out of the laser head to provide years of uninterrupted usage without need for cleaning or maintenance. All cavity optics is permanently locked in perfect alignment.

The laser head is a monolithic 3-dimensional design for ruggedness and compactness to minimize the space consumed in your lab or instrument. The fiber-coupled pump diode package, contained in the power supply, has an expected lifetime of more than 20,000 hours to minimize cost-of-ownership. The power supply also contains an integrated thermo-electrically-cooled (TEC) chiller. The chiller is designed specifically for this application to provide increased reliability and reduced overall system footprint. Additional features include automatic laser power control and USB/RS-232 interface for external monitoring and control.

DPSS DMP LH series is a state-of-the-art laser designed for today’s applications.
It combines superb performance and tremendous value for today’s market.

Applications
• Pumping Ti:Sapphire lasers:
ultrafast & continuous-wave
• Pumping dye lasers
• Spectroscopy
• Flow cytometry
• Solar cell processing
• Ophthalmology
• Medical diagnostics
• Film subtitling

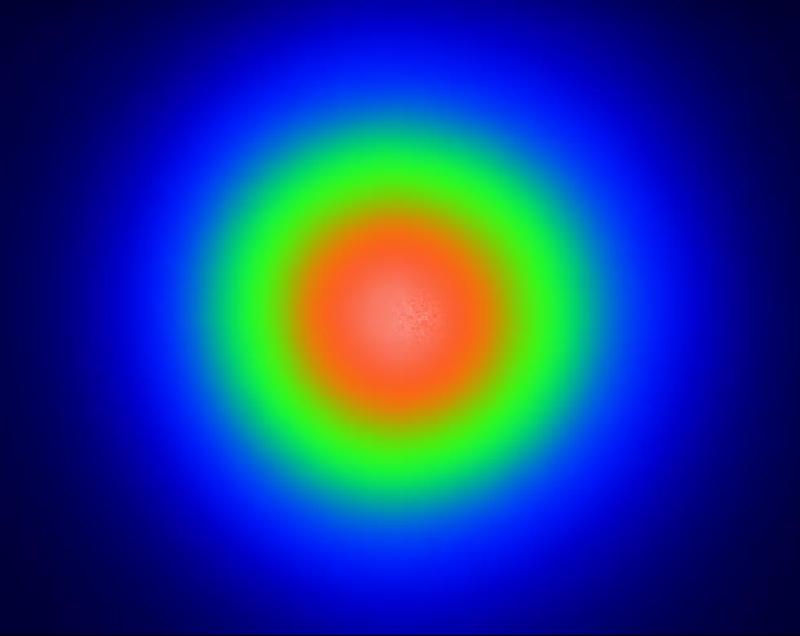

Typical Far-field beam profile




 Laser Output Characteris1,8  LH5
request a quote
LH6
request a quote
LH8
request a quote
LH10
request a quote
 Average Output Power > 5 W > 6 W > 8 W > 10 W
 Wavelength 532 nm
 Spectral Purity2 > 99.9 %
 Spatial Mode TEMoo
 Beam Quality (M2) 1.0 - 1.1
 Beam Ellipticity < 1.0 : 1.1
 Beam Diameter3 2.3 mm ± 10%
 Beam Divergence4 < 0.5 mrad
 Pointing Stability5 < 2 μrad/oC
 Power Stability6 < ± 0.25 % rms
 Noise7 Standard version:< 0.2 % rms
Low noise (NET) version: < 0.03 % rms
 Polarization > 100:1 vertical

 Power Requirements
 Operating Voltage 100-240 VAC, 50 Hz / 60 Hz
 Power Consumption 500 W max, 300 W typical

 Cooling Requirements
 Laser Head Closed-loop chiller in Power Supply - Cooler
 Power Supply (in Power Supply - Cooler) Air-cooled

 Environmental Specifications
 Operating Temperature 64-90oF (18-32oC)
 Relative Humidity 8-85%, non-condensing

 Laser Head - Physical
 Dimensions (Height x Width x Length) 2.7 x 5.3 x 10.1 inches
(69 x 135 x 256 mm)
 Weight 7.0 lbs (3.2 kg) approx.
 Cable Length 10 " (3 m)

 Power Supply-Cooler - Physical
 Dimensions (Height x Width x Depth) 13.0 x 12.7 x 18.2 inches
(330 x 323 x 463 mm)
 Weight 55 lbs (25 kg) approx.


Notes:
1. All performance specifications are guaranteed at specified power
2. Output power at 532 nm compared to output power at 1064 nm
3. 1/e2, measured at the output port of the laser head
4. Full angle (1/e2), measured at the output port of the laser head
5. Measured at far-field x and y positions after a 30 minute warm-up and over a 20°C to 30°C temperature range
6. Measured over a 24 hour period after a 15 minute warm-up
7. Measured from 10 Hz to 10 MHz
8. Specifications subject to change without notice.

Trestles LH femtosecond lasers with integrated DPSS DMPLH laser pump

Trestles LH10-fs/CW laser system at UC Santa Cruz Center of Nanoscale Optofluidics
Tresltes LH10-fs/CW laser at Harvard University is used for STED microscopy of nanodiamons

Del Mar Photonics is your one stop source for ultrafast (femtosecond) as well as continuum wave (CW) narrow linewidth Ti:Sapphire lasers Trestles LH Ti:Sapphire laser
Trestles LH is a new series of high quality femtosecond Ti:Sapphire lasers for applications in scientific research, biological imaging, life sciences and precision material processing. Trestles LH includes integrated sealed, turn-key, cost-effective, diode-pumped solid-state (DPSS). Trestles LH lasers offer the most attractive pricing on the market combined with excellent performance and reliability. DPSS LH is a state-of-the-art laser designed for today’s applications. It combines superb performance and tremendous value for today’s market and has numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping. Trestles LH can be customized to fit customer requirements and budget.
